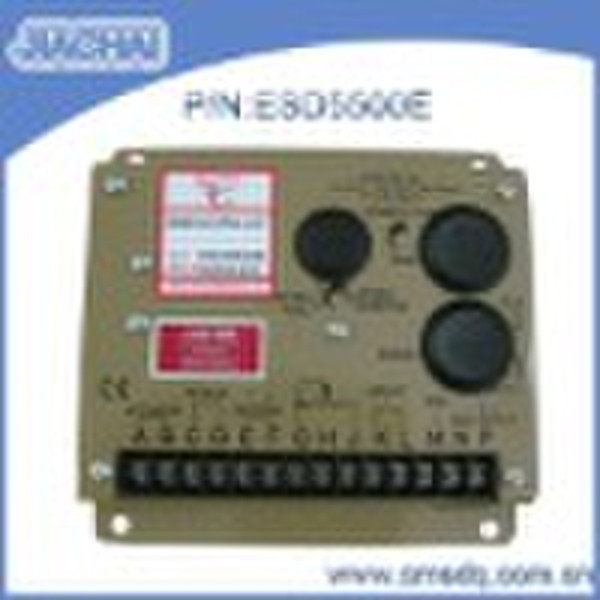

ESD5500E - GAC Speed Controller

Isochronous Operation/Steady State Stability.......................................... ± 0.25% or betterSpeed Range/Governor .............................................................. 1K7.5K Hz continuousSpeed Drift with Temperature .................................................................... ± 1% MaximumIdle Adjust CW .................................... ............................................ 60% of set speedIdle Adjust CCW .................................................................................. Less than 1200 Hz.Droop Range ........................................................................................... 1 5% regulation*Droop Adj. Max. (K-L Jumpered) ................................... 400 Hz., ± 75 Hz. per 1.0 A changeDroop Adj. Min. (K-L Jumpered) ....................................... 15 Hz., ± 6 Hz. per 1.0 A changeSpeed Trim Range ........................................................................................... ± 200 Hz.Remote Variable Speed Range ............................................. 500 7.5 Hz. or any part thereofTerminal SensitivityJ .................................... .............................. 100 Hz., ± 15 Hz / Volt @ 5.0 K ImpedanceL ....................................... ....................... 735 Hz., ± 60 Hz / Volt @ 65 K ImpedanceN ............................................................. 148 Hz., ± 10 Hz / Volt @ 1 Meg. ImpedanceP ..................................................................................... 10 VDC Supply @ 20 ma Max.ENVIRONMENTALAmbient Operating Temperature Range ..................-40° to +180°F (-40° to +85°C)Relative Humidity................................................................up to 95%All Surface Finishes.................................................. Fungus Proof and Corrosion ResistantINPUT POWERSupply ......... ..... 12 or 24 VDC Battery Systems (Transient and Reverse Voltage Protected)Polarity ....................................................................... Negative Ground (Case Isolated)Power Consumption ........................................ 50 ma continuous plus actuator currentActuator Current Range @ 77°F (25°C) - (Inductive Load) ....................... Min. 2.5 Amps, Max. 10 Amps continuousSpeed Sensor Signal ............................................................................ 0.5120 Volts RMSRELIABILITYVibration ................................................................................................. 1G @ 20100 Hz.Testing ................................................................................. 100% Functionally TestedPHYSICALDimensions ........................................................................... See Outline (FIGURE 1)Weight ............................................................................................... 1.2 lbs (545 grams)Mounting ..................................................................... Any Position, Vertical Preferred
