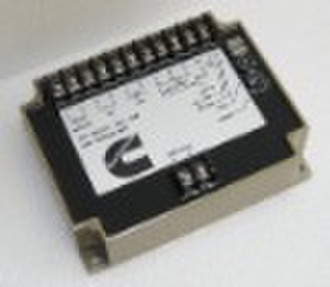

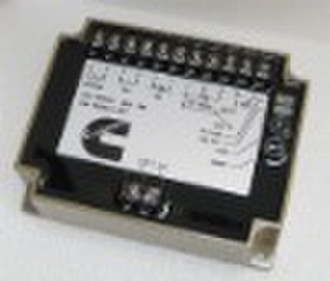

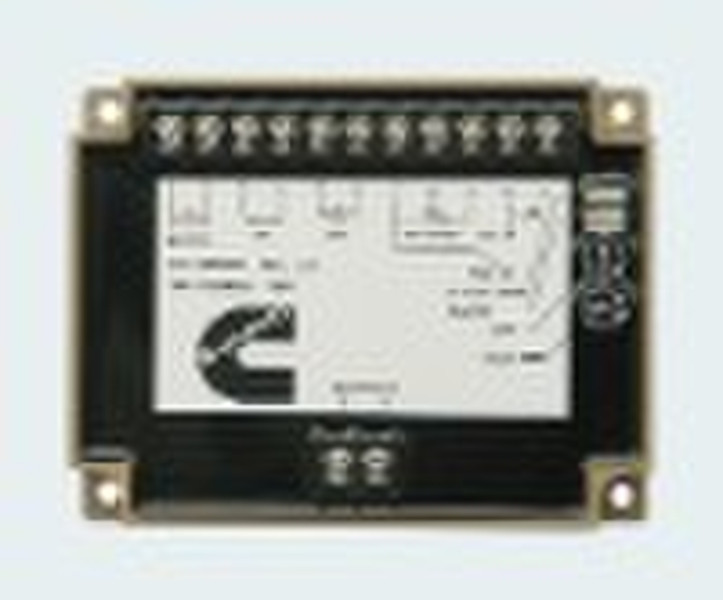

Cummins Speed Controller P/N: 3062322
Yueting Ji
Contact person
Basic Information
| Place of Origin | Chongqing China (Mainland) |
|---|---|
| Brand Name | Cummins |
| Model Number | 3062322 |
Electronic fuel control(EFC) SPECIFICATION: RPM Stability: <±0.25% Speed Range: 1KHz 6.5KHz Thermal stability: Max ±0.7% IDLE Regulation: 260 ±20Hz DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp Maximum: 400Hz ±75Hz/ 1 Amp External Speed Regulation: ±200Hz (with 1 KΩ connected) AUX Input Sensitivity: 148Hz / 1V., ±10Hz Impedance: 1MΩ Working Temp Range: -40 85 ENVIRONMENT: Working Humidity Range: Maximum 95% Stocking Temp: -55 92 Shocking: 20-100HZ 500mm/Sec. INPUT POWER SUPPLY Voltage: 12V or 24V Grounding Pole: Negative pole Power Supply: 40mA Actuator Continuous Current: Minimum 1A, Maximum 4.5A MPU Signal: 2 120V RMS NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency.
Delivery terms and packaging
Packaging Detail: Carton or as your requirement Delivery Detail: 1-10 days
Port: Chongqing
