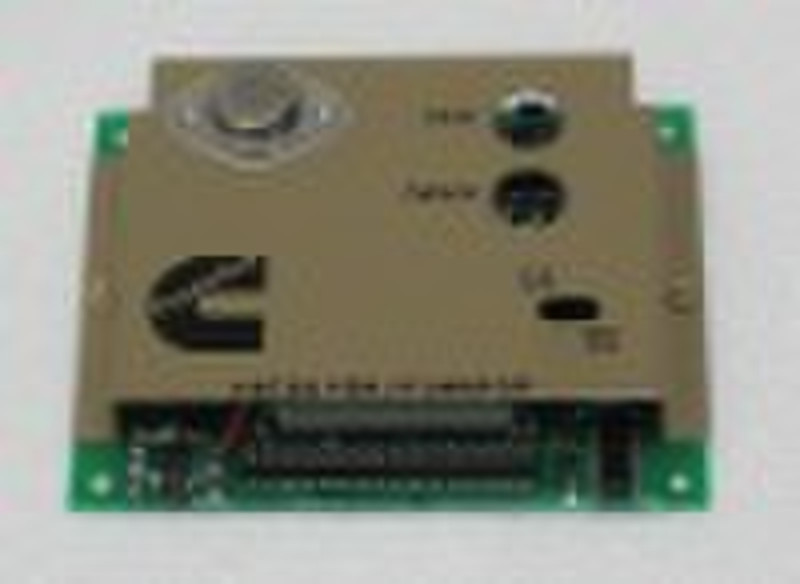

Cummins Speed Controller P/N:3044195
Yueting Ji
Contact person
Basic Information
| Place of Origin | Chongqing China (Mainland) |
|---|---|
| Brand Name | Cummins |
| Model Number | EFC-3044195 |
Electronic fuel control(EFC) SPECIFICATION: RPM Stability: <±0.25%Speed Range: 1KHz 6.5KHzThermal stability: Max ±0.7%IDLE Regulation: 260 ±20HzDROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp Maximum: 400Hz ±75Hz/ 1 AmpExternal Speed Regulation: ±200Hz (with 1 KΩ connected)AUX Input Sensitivity: 148Hz / 1V., ±10Hz Impedance: 1MΩWorking Temp Range: -40 85ENVIRONMENT:Working Humidity Range: Maximum 95%Stocking Temp: -55 92Shocking: 20-100HZ 500mm/Sec.INPUT POWER SUPPLYVoltage: 12V or 24VGrounding Pole: Negative polePower Supply: 40mAActuator Continuous Current: Minimum 1A, Maximum 4.5AMPU Signal: 2 120V RMSNOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency.
Delivery terms and packaging
Packaging Detail: Carton Delivery Detail: 1--10 days
